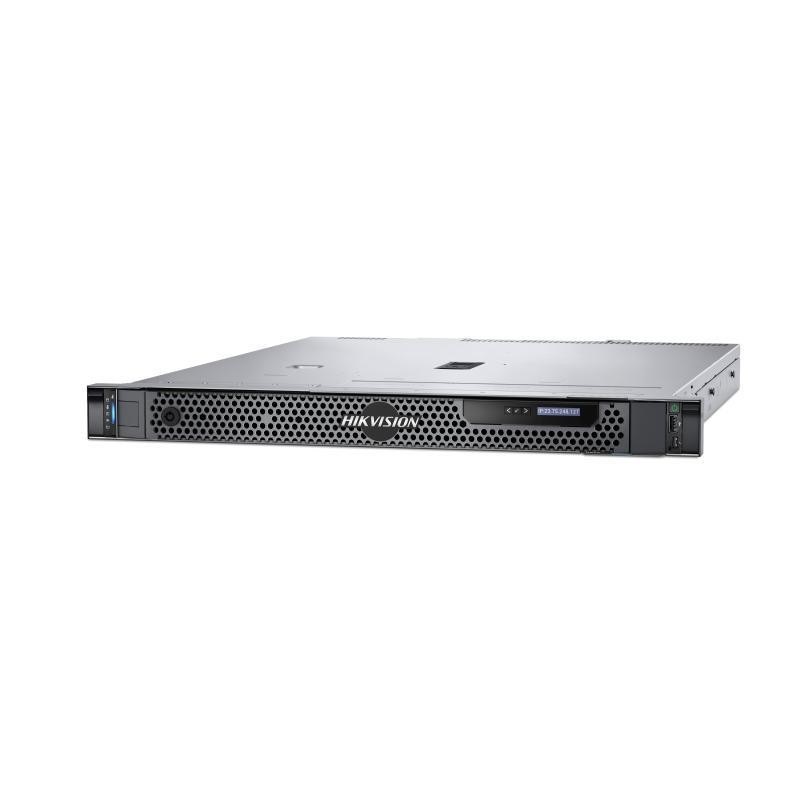

Rackmount VMS Server

HikCentral VMS servers combine hardware and software products to give customers a cost-effective and comprehensive solution.

Plug and play: No additional activation is required, and it is ready to use right out of the box
Easy to use: Pre-installed operating system, easy to operate and deploy

All-in-one software and hardware, no activation required, easy delivery and reliable service

Guaranteed compatibility: Tested by professional testing team to ensure stable operation
Reliable after-sales service: 24/7 platinum after-sales service

Devices and Resources
Video Management300ch by default; can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)
Access ControlsNot included; can be expanded into 1024 (Including Doors and Outdoor Station)
Indoor StationNot included; can be expanded into 5000
ANPR CamerasNot included; can be expanded into 1024ch
Lanes of Entrance & ExitNot included, can be expanded into 40
Cameras with Face Capture FunctionNot included; can be expanded into 3000ch
Alarm PanelNot included; can be expanded into 1024
Smart WallsNot included; can be expanded into：Smart Walls：32；Decoding devices：32
AttendanceNot included, can be expanded by extra license

Hardware Specifications
CPUE-2324G×1， 3.1 GHz, 8 MB Cache， 4 Cores, 4 Threads
Memory
Standard Config：1 × 16GB UDIMM，3200MT/s
Scalability：4 × 128GB UDIMM
Hard Disks
Standard Config：2×1TB 3.5 inch SATA HDD
Scalability：2×22TB 3.5 inch SATA/SAS HDD
Storage Controller
Standard Config：PERC H355 adaptor LP (support RAID 0/1)
Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache
Supported Operating SystemsWinSvr2019 multilingual version pre-installed
PCIe SlotsTwo Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots

Management
Remote ManageiDrac9 Enterprise
OpenManage™ SoftwareSupport OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)
Integrations and Connections
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible;
Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus
SecuritySupport Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)

General
Net Weight12.2 kg (26.9 lb)
Gross Weight18.5 kg (40.79 lb)
Dimension (W × H × D)482.00 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'')
Package Dimensions (W × H × D)595.00 mm × 251.00 mm × 923.00 mm (23.43'' × 9.88'' × 36.34'')
Operating Temperature10 °C to 35 °C (50 °F to 95 °F)
Storage Temperature-40 °C to 65 °C (-40 °F to 149 °F)
Operating Humidity8% to 80% (no condensation)
Storage Humidity5% to 95% (no condensation)
Power Supply450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A
Form Factor1U Rack

HikCentral-P-VSS-Base/HW/300Ch(B)
